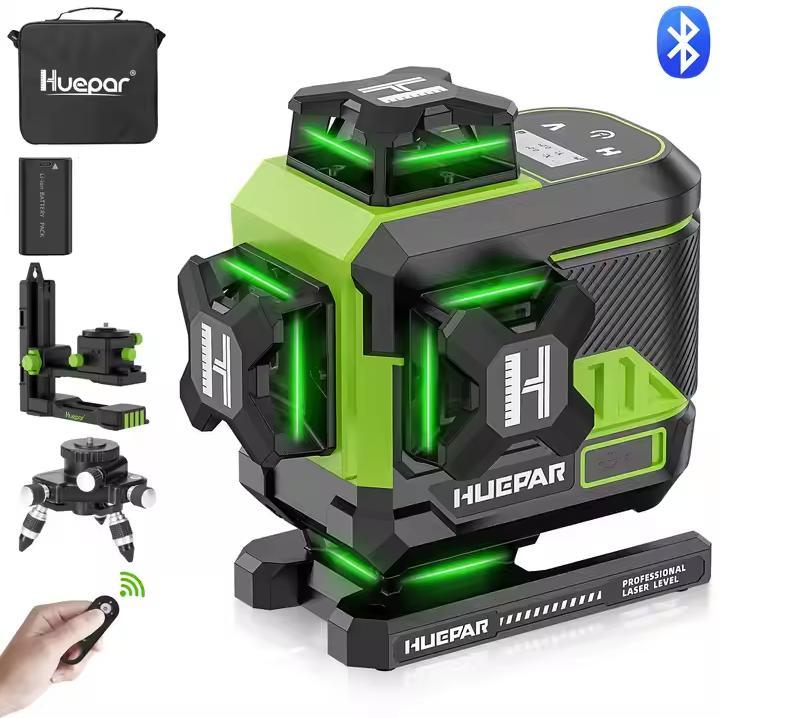

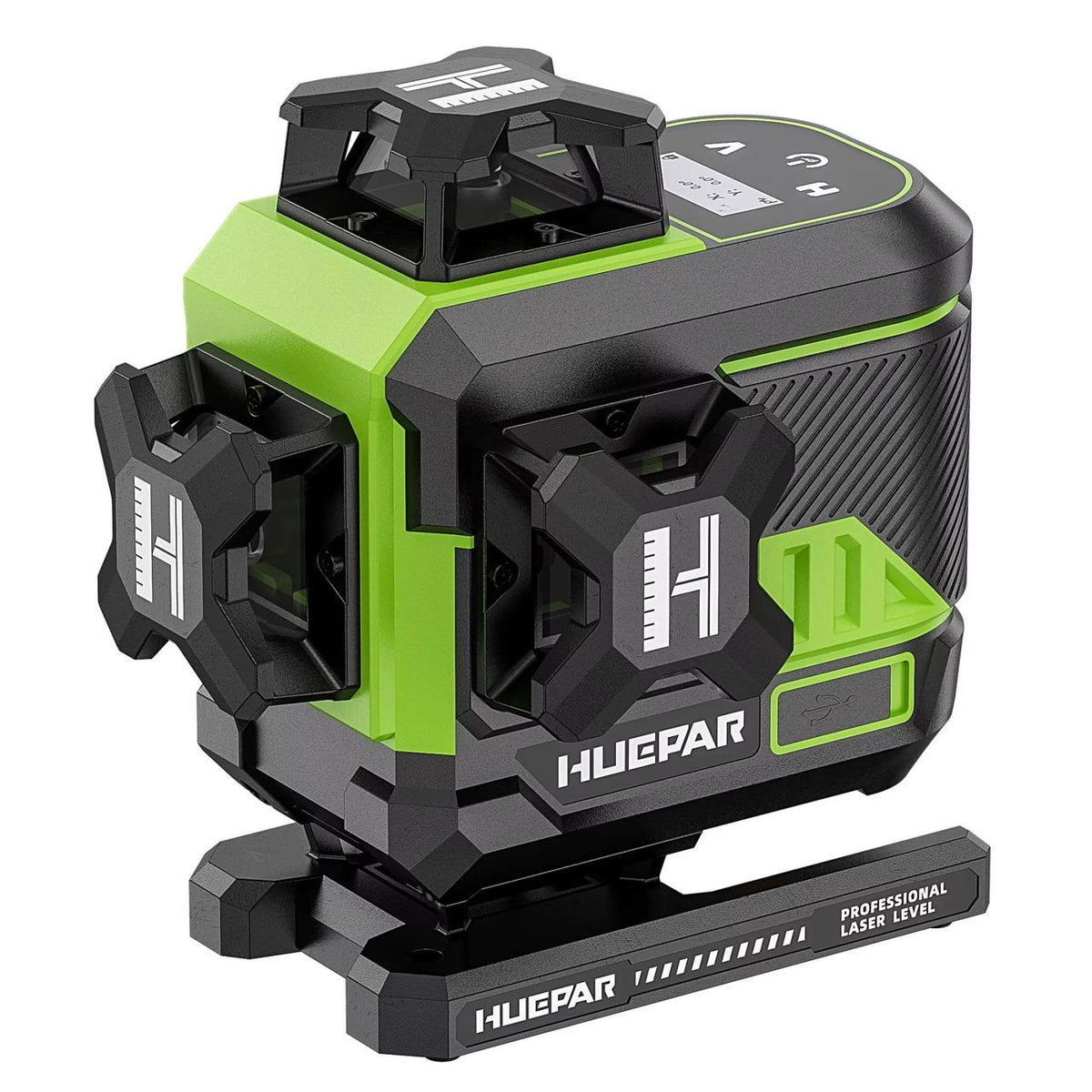

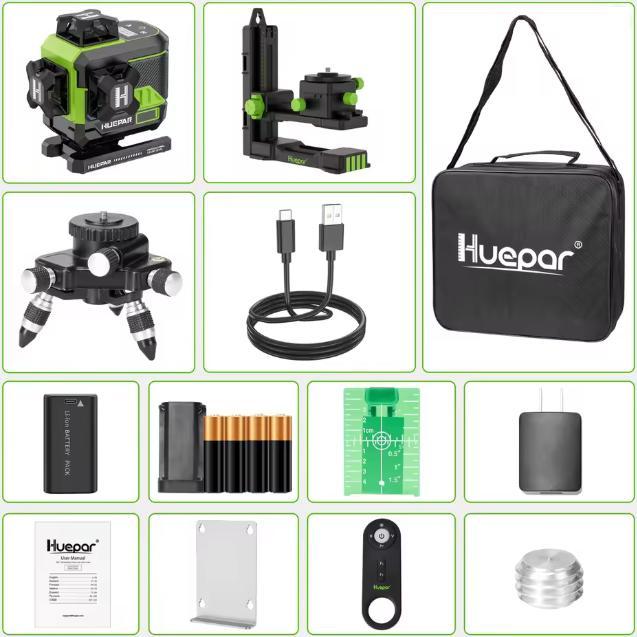

Huepar Z04CG laser level, bracket and rotary platform included

Laser Level Huepar Z04CG, bracket and rotating platform included

LCD Display
The Huepar Z04CG laser level features an LCD display for easy reading of battery status, angle, pendulum, and pulse mode states on the screen.

Pulse Mode
After powering on, short press the power button to switch pulse mode on/off. When connected to the Huepar app and the Bluetooth remote control, pulse mode can be enabled/disabled via the application and the remote control. Pulse mode extends the working range up to 200 meters in bright working conditions when used with the Huepar Line laser receiver.

Compatible with Huepar LR-6RG / LR-5RG / LR-8RG laser detectors. Note: Keep pulse mode turned on during use with the receiver.

Line Switching and Bluetooth Technology

Short press the "H" and "V" buttons on the keypad to switch horizontal and vertical laser lines individually. The Huepar Bluetooth remote control / app allows you to individually select four 360° laser lines at a distance of up to 30 meters.

Laser lines can be temporarily switched off via the Huepar remote control / app when you need to step away for a while. In manual mode, when all laser lines are switched off, the laser tool will automatically power off after about 5 minutes of inactivity.

The laser tool can connect to two Bluetooth devices simultaneously. It can connect to two Bluetooth remote controls or two smartphones (Android or iOS) or one Bluetooth remote control and one smartphone at the same time.

Self-leveling Mode and Manual Mode

Self-leveling Mode
After unlocking the pendulum, self-leveling mode is activated. The laser beam will sound an audio alert, and the laser line will flash rapidly when the level goes beyond the self-leveling range of ±3.5°.

Thanks to Bluetooth technology, a lock icon will be displayed in the Huepar application and on the LCD screen.

Manual Mode
When the pendulum is in the locked position, the laser tool can be placed for use at any angle. The laser beam will flash every 3-5 seconds to remind you that it is currently not self-leveling.

Bluetooth Technology

Thanks to Bluetooth technology, a lock icon will be displayed in the Huepar application and on the LCD screen to remind the user that they are in manual mode.

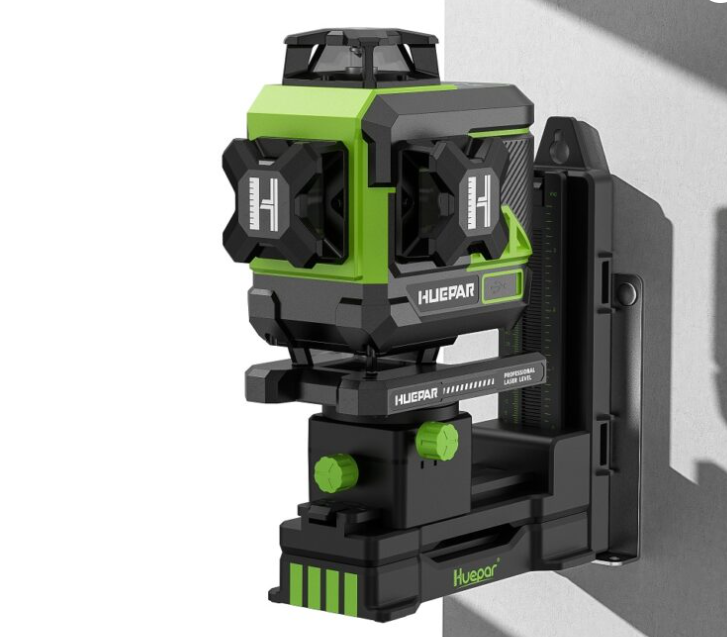

Magnetic Mount and Mounting Thread

Equipped with a rotating magnetic mount, the laser tool can be freely rotated 360°.

Fine-tuning knobs on the stand allow adjusting the position left and right, front and back up to 5.5 cm, and can also help adjust and lock the height up to 9.5 cm.

Inch and metric graduations on the stand significantly facilitate adjustments.

The magnetic mount features 1/4″-20 and 5/8″-11 mounting threads for different tripod thread types.

The laser tool also has a 1/4″-20 mounting thread for standard tripods or tripod mounts.

Triple Power Methods

This laser tool uses a lithium-ion battery...[and table trails]

Specifications
