SHIJING 9201C-1200 mm — professional electric tile cutter designed for precise cutting of ceramic tiles, porcelain stoneware, granite, marble, and artificial stone. A powerful brushless motor, advanced automation, and a sophisticated cooling system make this model one of the most effective solutions for high work volumes and large-format materials.

Purpose and advantages

Power and speed adjustment

The tile cutter is equipped with a 3800 W brushless motor, supporting four spindle rotation speed modes: 3000 / 4000 / 5000 / 6000 rpm.
This allows optimal selection of settings depending on the type of tile and material thickness. It works with blades from 100 to 120 mm in diameter, with a maximum cutting depth of 30 mm.

Modern automation

The model is equipped with extended control functionality:

• automatic carriage movement;

• remote control (RC remote);

• voice menu;

• touch panel;

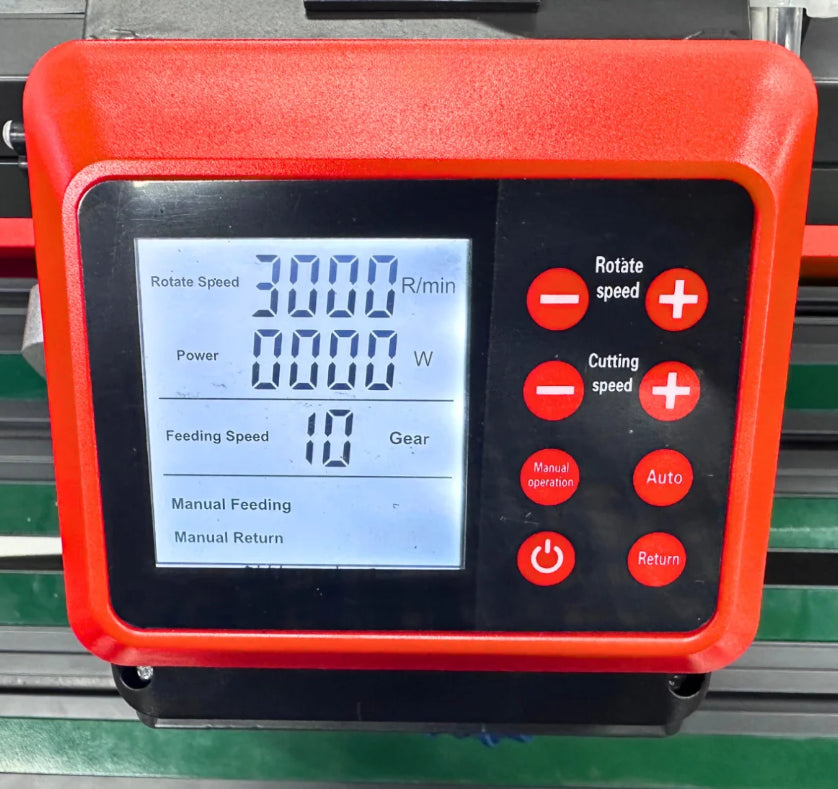

• LCD display showing mode and operation parameters.

This functionality makes the process as simple and convenient as possible.

Cooling system

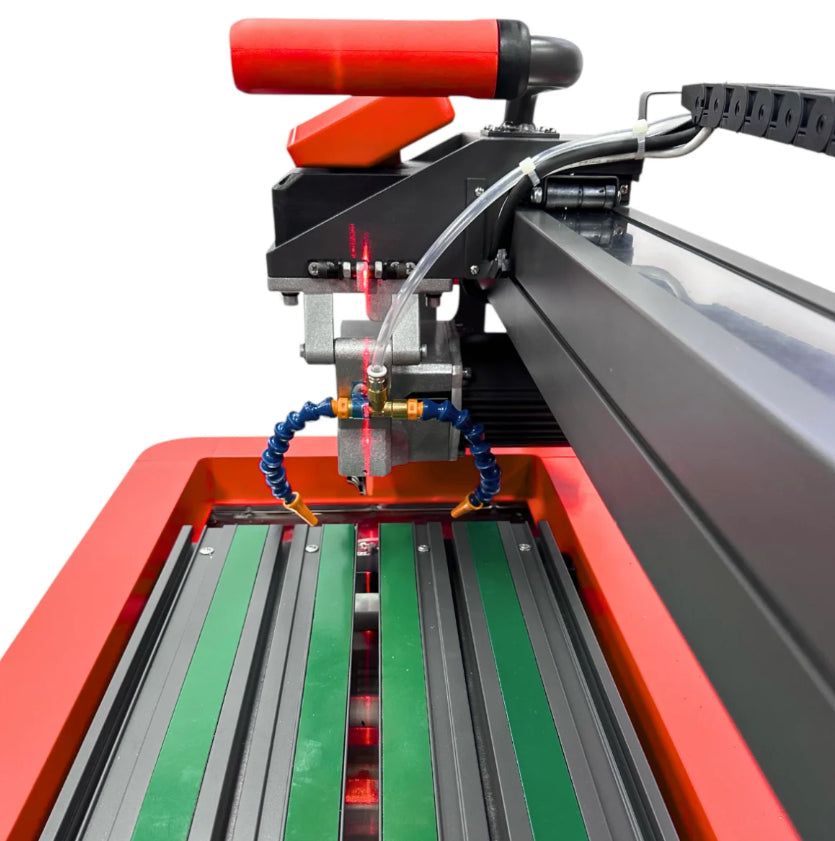

A clean and precise cut is achieved thanks to an advanced 4-way cooling system:

• external pump;

• water filtration;

• retractable reservoir;

• synchronous water supply directly into the cutting zone.

This prevents overheating of the tile and extends the service life of diamond blades.

Precision for any tasks

A green laser pointer ensures perfect accuracy for straight and miter cuts.
The machine performs the following types of operations:

• straight cut;

• cut at an angle up to 48°;

• beveling;

• edge cutting;

• radius undercuts.

Mobility and convenience

The design of the tile cutter is well thought out for on-site work:

• folding legs;

• wheelbase;

• convenient handles;

• quick assembly/disassembly;

• extension tables allow working with wide slabs.

Technical specifications

• Maximum blade diameter: 120 mm

• Speed adjustment: 3000–6000 rpm

• Motor power: 3800 W

• Cutting length: 1200 mm

• Cutting depth: 30 mm

• Bed material: aluminum alloy

• Miter cut: up to 48°

• Laser: green

• Weight: 76 kg

• Purpose: porcelain stoneware, granite, marble, ceramics, glass, wood, thin aluminum

• Warranty: 12 months

• Brand: SHIJING

• Country of manufacture: China

Package contents

• Electric tile cutter SHIJING 9201C-1200 mm — 1 pc

• Extension side tables — 2 pcs.

• Water cooling system (external pump)

• Diamond blade — 1 pc.

• Tool bag

• Manual

Key advantages of SHIJING 9201C-1200 mm

• Brushless motor 3800 W

• Precise speed adjustment

• Compatibility with 100-120 mm blades

• Cutting depth up to 30 mm

• LCD display, touch control, voice menu

• Automatic carriage feed

• Advanced cooling system

• Mobile and foldable design

• Laser pointer

• Universal cutting: straight, angle, bevel, edge, radius
