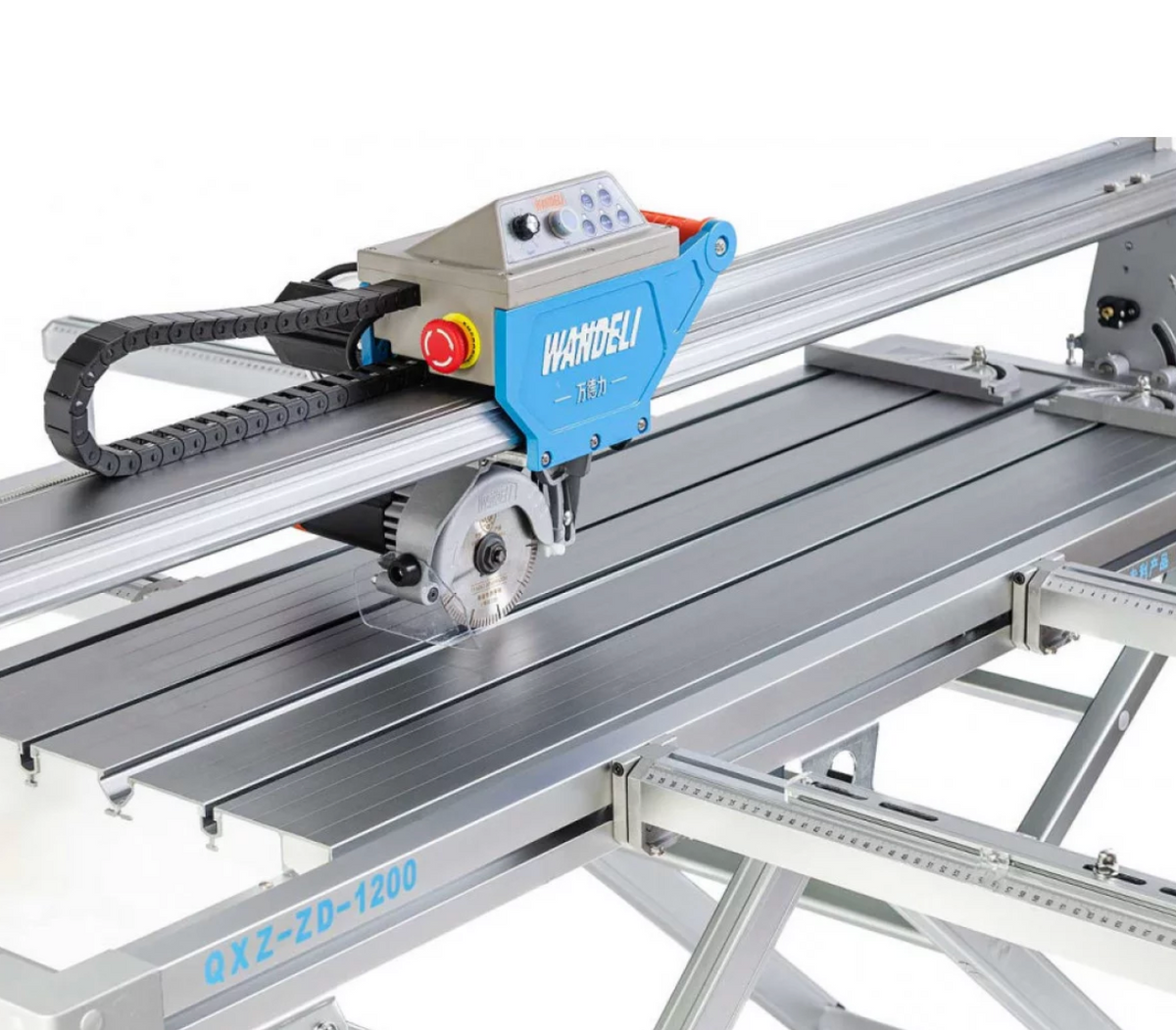

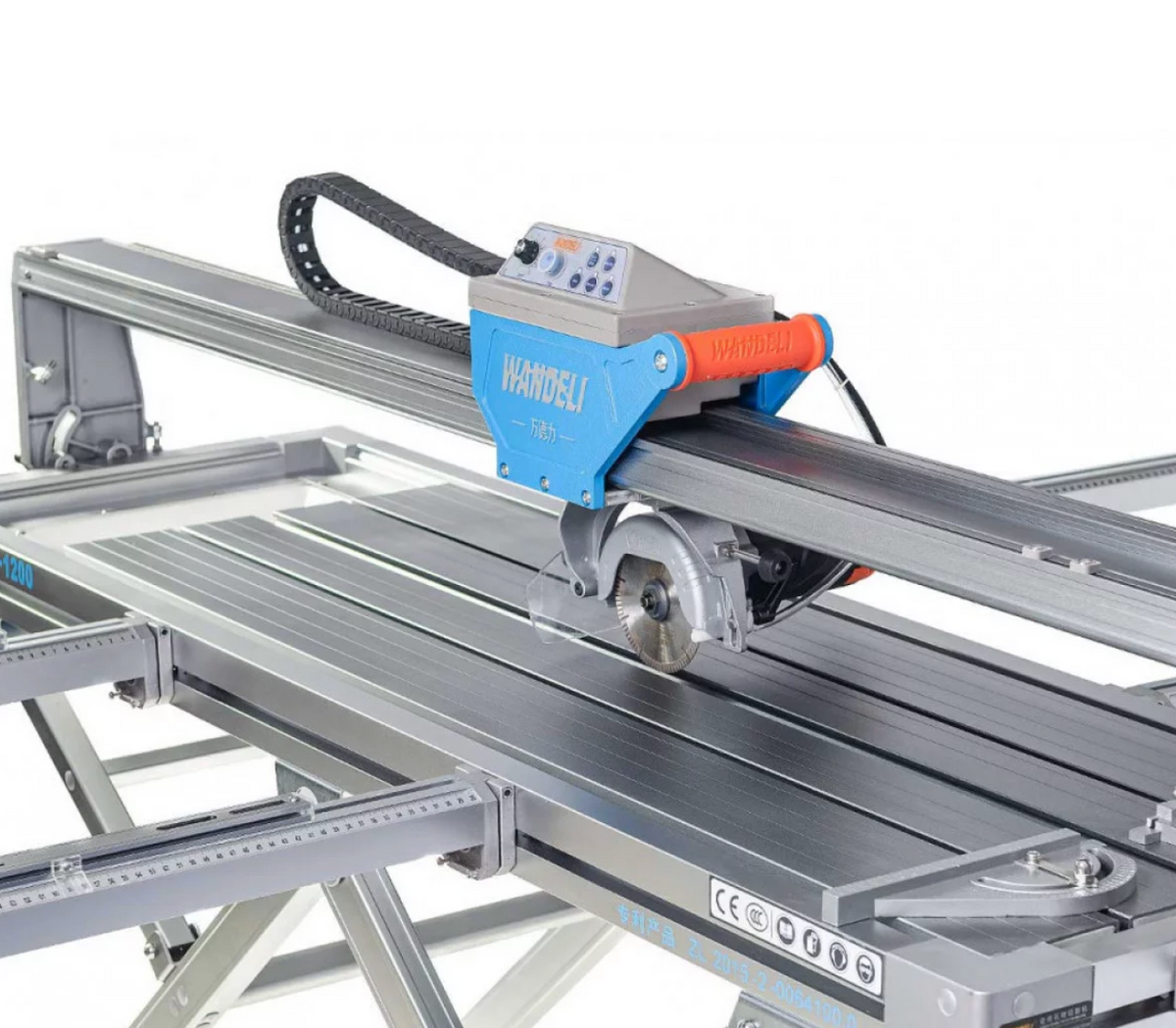

Electric tile cutter Wandeli QXZ-ZD-1200 with reinforced AUTOMATIC system (QXZ-ZD-1200)

Electric tile cutter Wandeli QXZ-ZD-1200 with AUTOMATION reinforced (QXZ-ZD-1200)

Wandeli is the leader among professional tile cutters and stone cutters! It has no equal, it makes a perfectly straight cut, saves time, increases productivity, is easy to clean, and is simply comfortable to work with, which is why every tile setter wants to have it in their arsenal. The Wandeli QXZ-ZD-1200 tile cutter with automation is made of aluminum profile and has a lightweight design (63 kg), which makes it convenient for transportation. The quick-assembly design guarantees the compactness of the equipment during storage.

The Wandeli QXZ-ZD tile cutter is a "reinforced machine" and differs from the Wandeli QX-ZD in that its frame is made of thicker aluminum, it also has a wider working table (50 cm), and accordingly, the QXZ-ZD series has a slightly higher weight than the QX-ZD. Otherwise, these series do not differ in any way.

The abbreviation "ZD" means that the tile cutter has three operation modes:

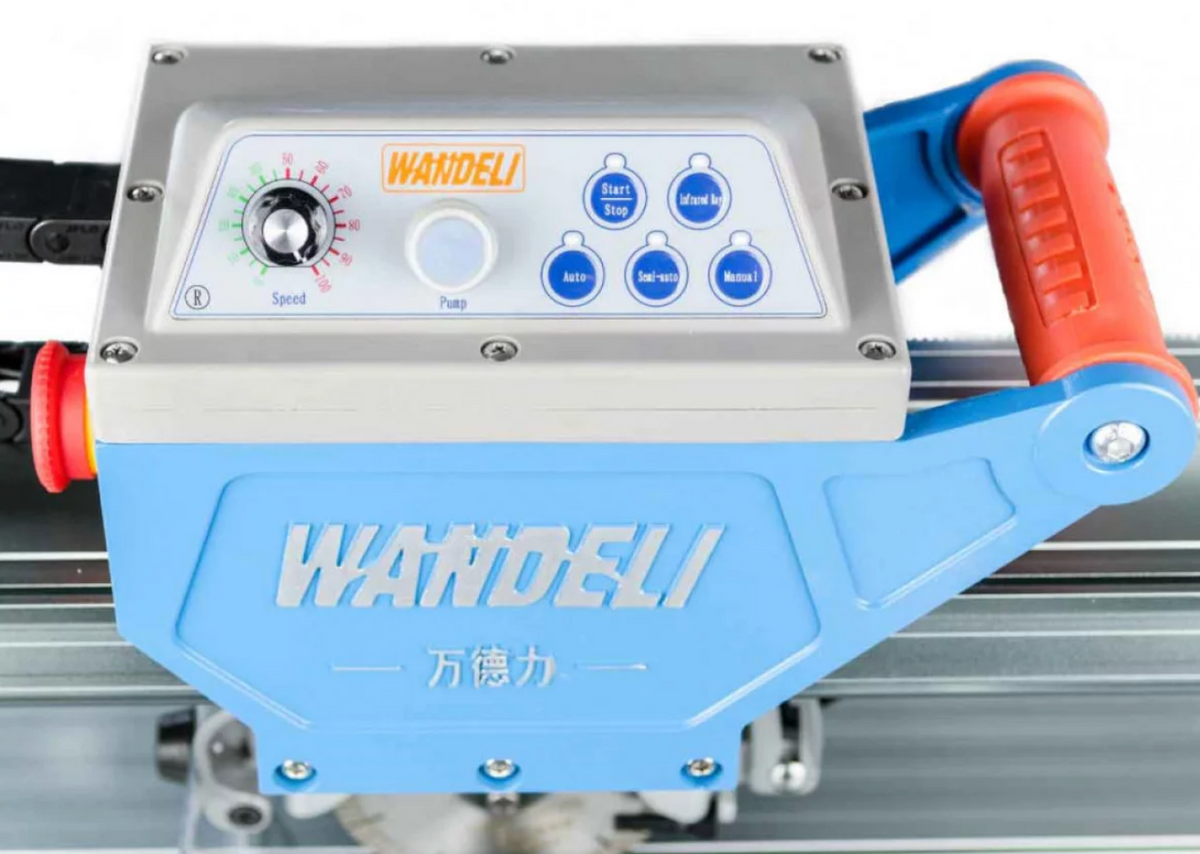

1) Automatic mode: automatic cutting and automatic return of the cutting mechanism (carriage) to the initial cutting point;
2) Semi-automatic mode: automatic cutting and machine shutdown after a single pass;
3) Manual mode: cutting in manual mode, just like on conventional electric tile cutters.

Advantages of the Wandeli QXZ-ZD-1200 tile cutter:

• automatic movement of the cutting mechanism (carriage);

• high-speed and sufficiently powerful motor 1550W/12000 rpm;

• cutting at an angle, beveling, rounding, edge removal, possibility of cutting by template (serial cut);

• possibility of installing two blades simultaneously, which allows cutting and making an original bevel at the same time (recommended only on soft material);

• high cutting precision;

• laser pointer for convenient marking;

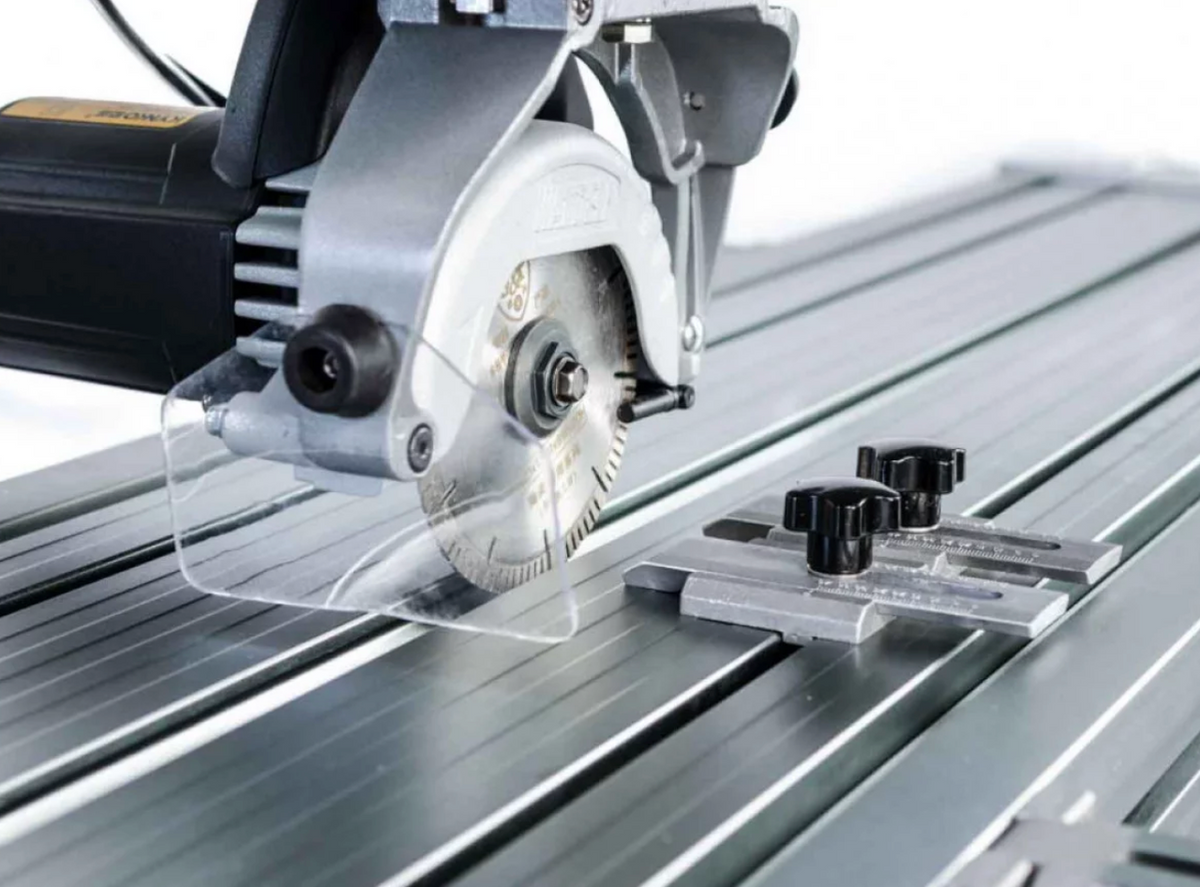

• low cost of blades compared to tile cutters using 230-250 mm blades (blades up to 125 mm are installed on Wandeli, maximum cutting thickness is 30 mm, an 115 mm blade is optimal);

• possibility to adjust cutting depth;

• guide rail is protected from the inside (from the table), which prevents contamination of guide rollers;

• the tile cutter does not accumulate water and mud, it constantly drains into a reservoir under the table, allowing quick and trouble-free cleaning of the machine;

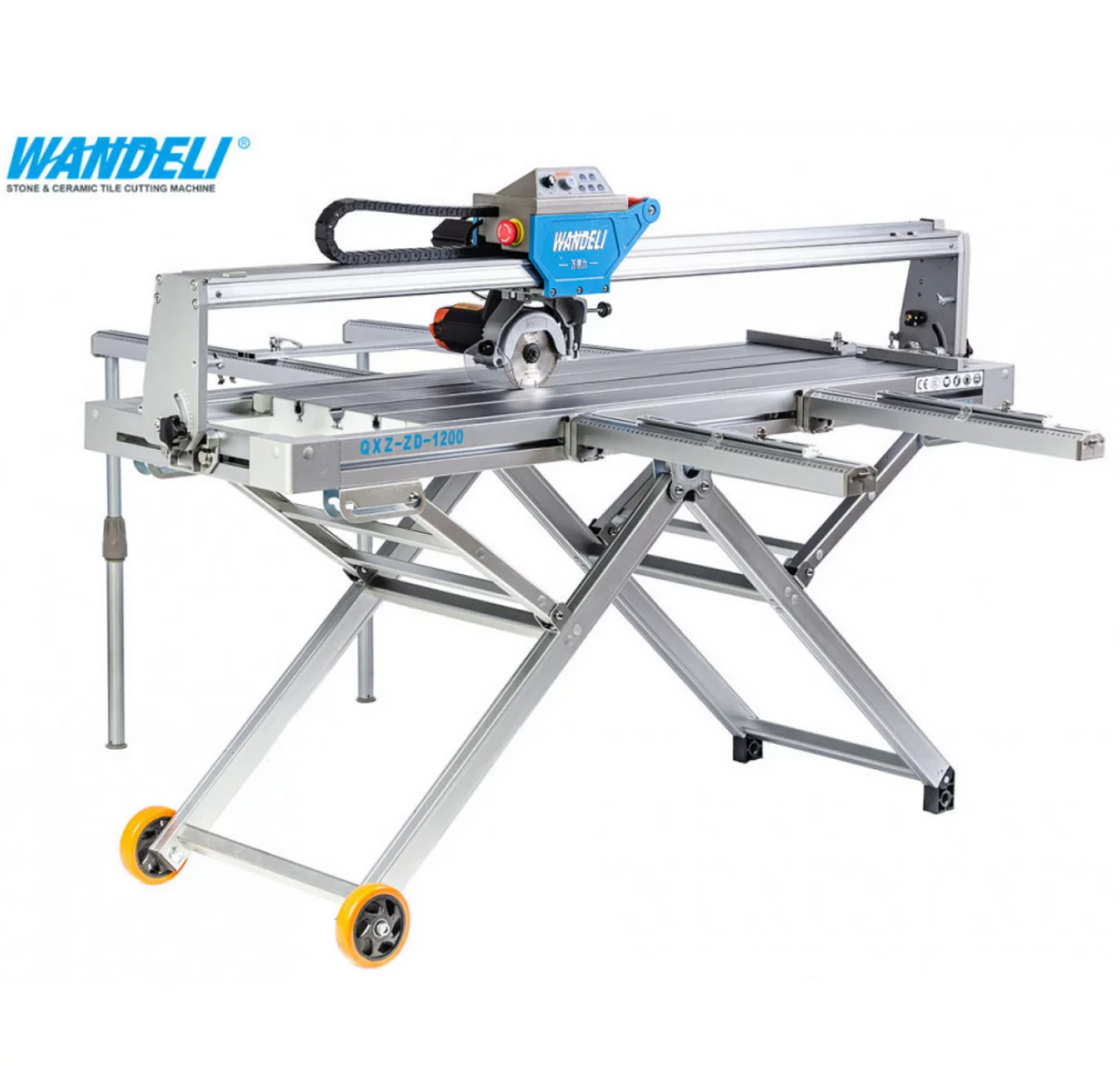

• a pair of wheels and the assembly design of the table help to move the tool more comfortably. The body and guides are made of durable and lightweight materials. Guides for serial and miter cuts are included;

• working area with water supply, there is a tray for collecting fluid.

Specifications:

• Design: machine

• Type: electric

• Equipment class: professional

• Motor power: 1550 W

• Nominal voltage: 220 V

• Motor speed: 12000 rpm.

• Electronic motor protection: yes

• Movable carriage with motor: yes

• Carriage movement system: ball bearings

• Automatic carriage movement: yes

• Carriage movement speed adjustment: yes

• Types of cutting: straight cut, diagonal cut, at a 45° angle, edge removal, beveling, end rounding

• Vertical blade travel: yes

• Active water cooling (pump): yes

• Tolerance: 0.2 mm over the entire cutting length

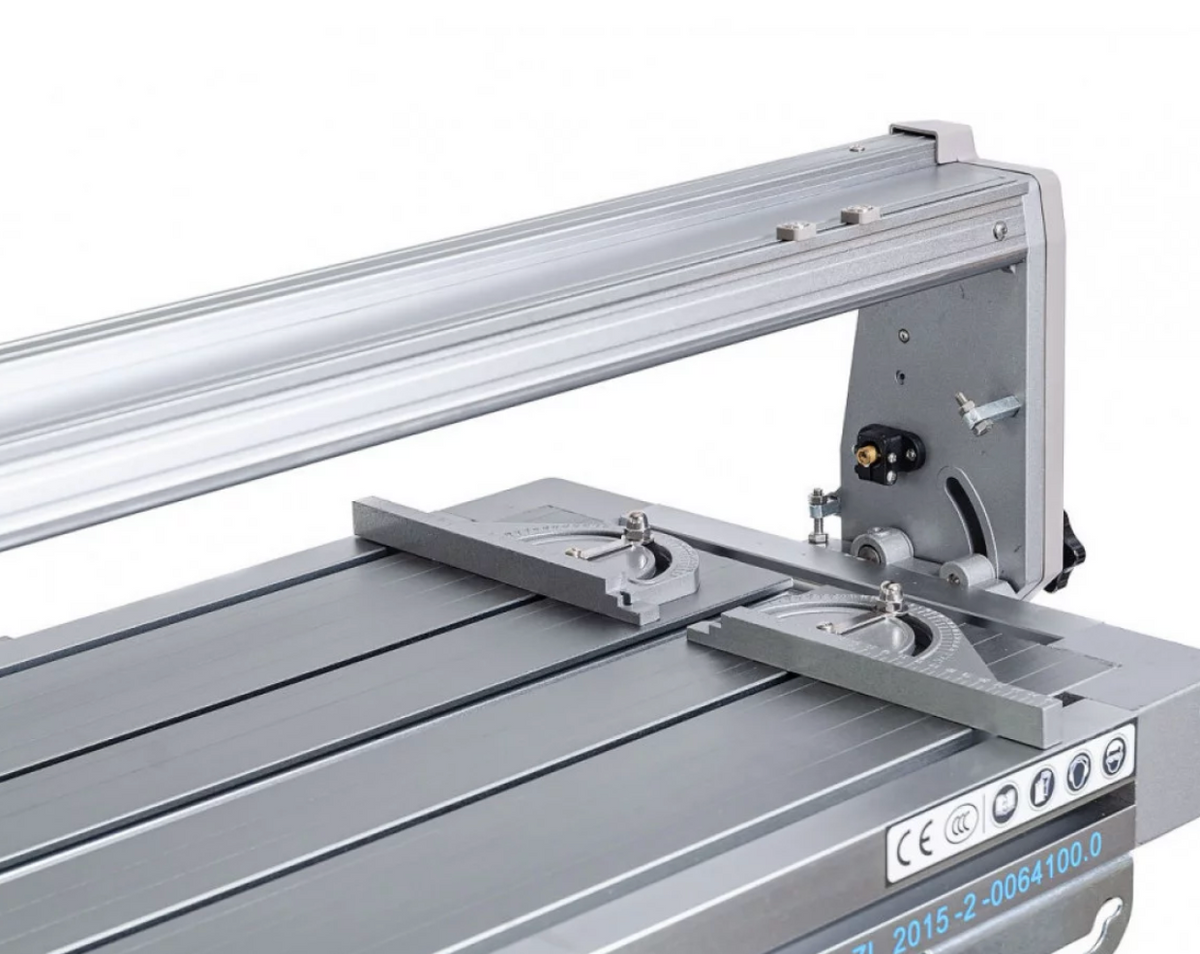

• Swivel goniometer with locking and graduation: yes

• Cutting head tilt angle: 0-47°

• Maximum cutting depth at 90°/45°: 30/22 mm

• Maximum cutting blade diameter: 125 mm

• Bore diameter: 20 or 22.23 mm

• Blade included: yes (2 pcs, diameter 116 mm)

• Water cooling type: feed into the cutting zone

• Working table size without extender: 1200x500 mm

• Table extender for large format tiles: yes

• Wheelbase for transportation: yes

• Blade protective guard: yes

• Laser cut pointer: yes (red beam)

• Processing material: tile, stone, granite, marble, glass

• Safety class: 1

• Electrical protection: IP54

• Noise level: 90dB(A) (EN ISO 3744)

• Machine weight: 63 kg

• Manufacturer: Wandeli (China)
