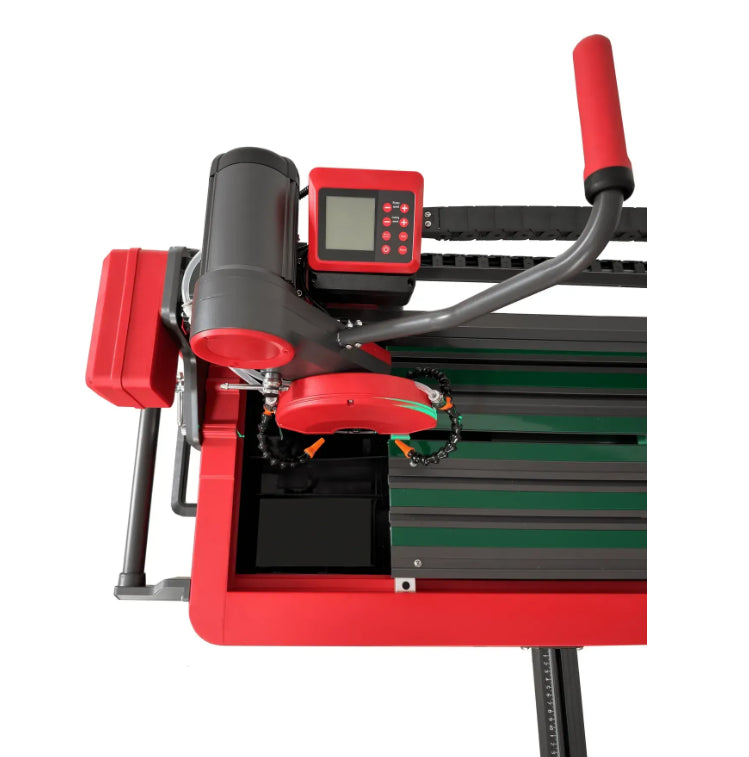

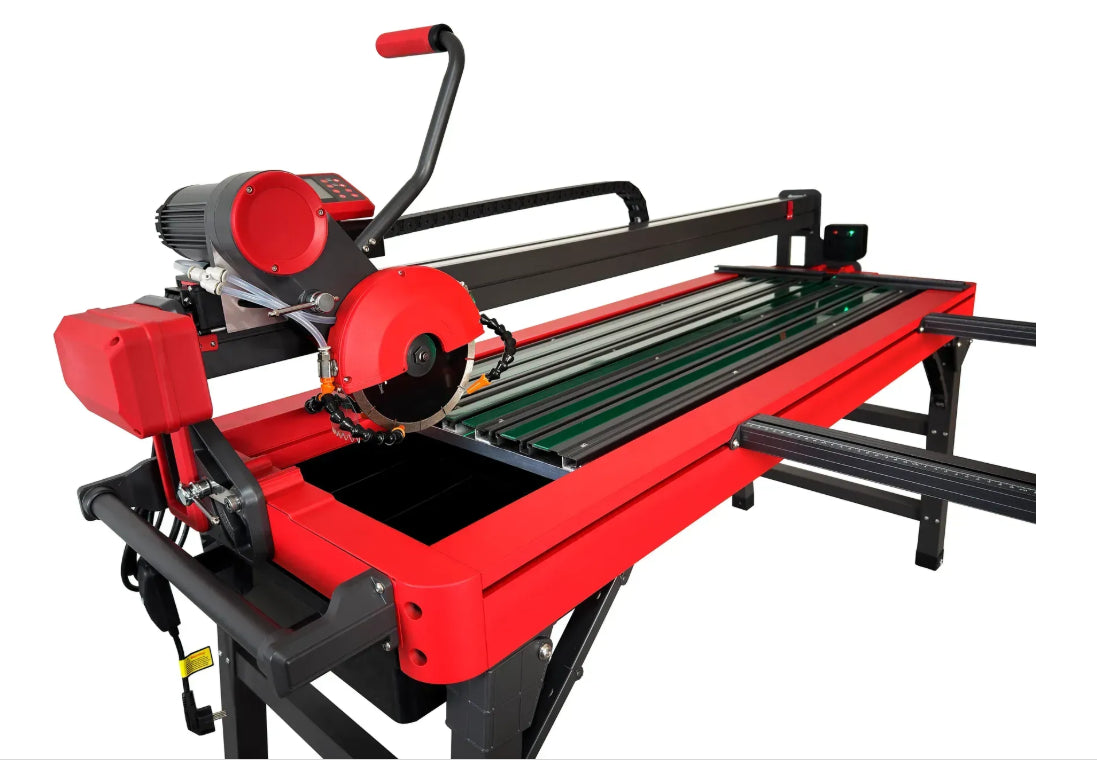

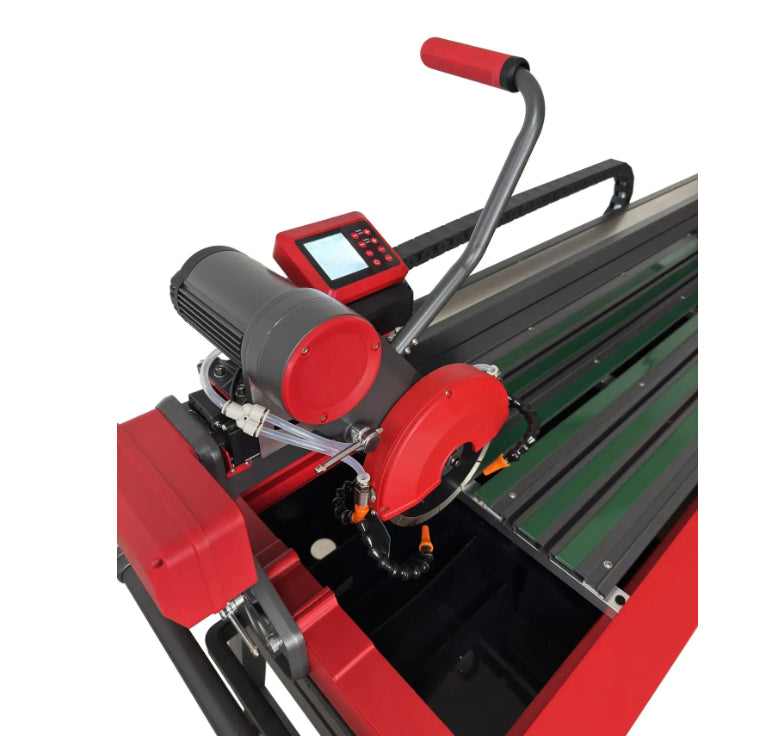

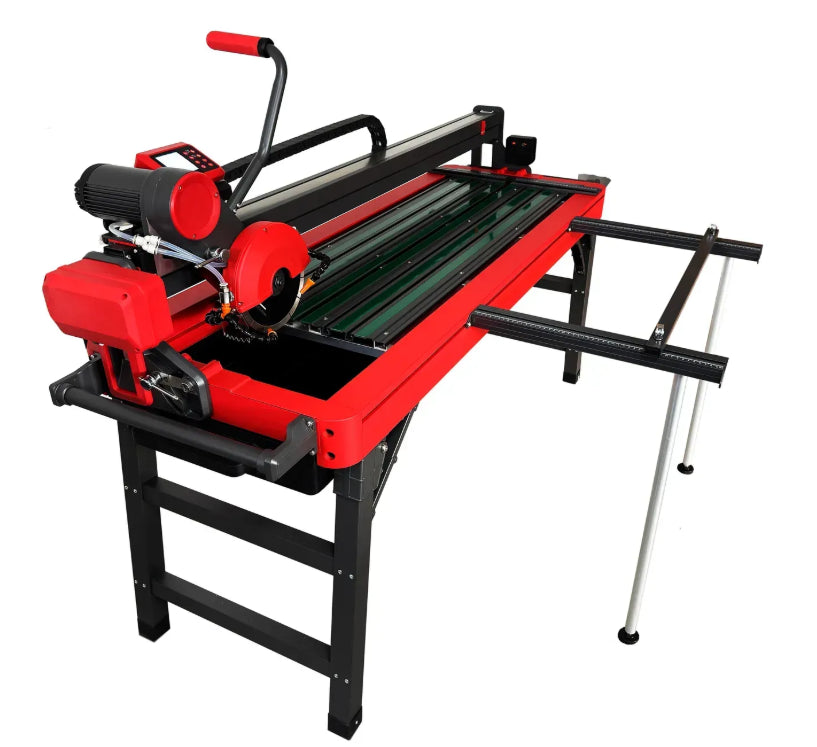

Electric tile cutter SHIJING 9201A-1200 for cutting and chamfer grinding of materials

Electric tile cutter SHIJING 9201A-1200 for cutting and miter grinding of materials

Electric tile cutter is a professional machine for processing ceramic tiles, porcelain stoneware, and natural stone, which ensures a perfectly clean and precise cut.

The electric machine is equipped with a modern brushless motor with a power of 4500 W with low electricity consumption and noise levels.

The electric motor can be set to 4 rotation speeds: 3000, 4000, 5000, 6000 rpm. This allows you to perfectly match the mode to the processed material with different hardness and texture.

By adjusting the motor rotation speed, the machine can be adapted to work with

various materials, such as: ceramic tiles, porcelain stoneware, marble, granite, artificial stone made of

quartz, acrylic, dekton, and other artificial materials. For different materials, it is recommended to use appropriate cutting blades, corresponding rotation speed, and carriage feed speed.

The SHIJING 9201A machine allows not only processing a wide range of materials but also achieving factory-like results ("factory edge", bevel, radius edge), and others. The machine is equipped with a powerful built-in green laser pointer, which ensures accurate marking.

Due to the carriage settings, diamond blades with a diameter of 130-200mm can be used with the 9201A electric machine. The cutting depth can reach 50 mm when working with a 200mm cutting blade.

Thanks to the low noise level of the brushless motor of this electric machine, the manufacturer recommends using silent blades of the "SILENT" type (quiet/silent). This will ensure comfortable and quiet indoor operation.

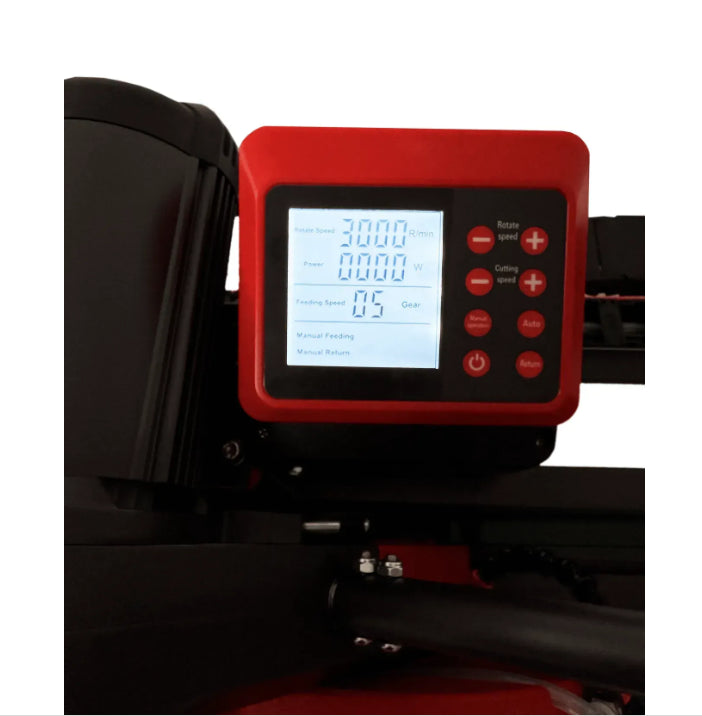

The electric tile cutter features automatic cutting modes, voice prompts when selecting modes, and a remote control. The central console is equipped with an LCD display with a voice function.

The electric machine comes with a retractable water reservoir, an adjustable external water

pump, and synchronous water supply. It is equipped with a 4-way cooling system, which ensures effective cooling of the cutting zone. The SHIJING 9201A is equipped on both sides with protective lifting handles and wheels, making it easy to move the machine.

Advantages:

• Brushless motor with low noise level and energy consumption
• Speed adjustment 3000-6000 rpm
• Easy control via touch panel and remote control
• Voice prompts for correctly selected modes
• Use of silent blades of the SILENT type
• Use of blades with a diameter of 130-200 mm
• Adjustment of material cutting depth up to 50 mm
• Adjustment of cutting depth and angle up to 60°
• Automatic carriage movement modes
• Cutting for miter grinding of materials
• Active synchronous water cooling with an external stationary pump
• Removable reservoir of the cleaning system with drainage and mud compartments
• Wheelbase and folding legs for convenient transportation

Package contents:

• Tile cutter SHIJING 9201A-1200 - 1 pc.
• Extension table – 2 pcs.
• External cooling system
• Cutting blades - 1 pc.
• Tool bag – 1 pc.

Technical specifications:

• Model: 9201A-1200
• Motor power: 4500 W
• Nominal voltage: 220V
• Spindle rotation speed: 3000-6000 rpm
• Rotation speed adjustment: Yes
• Electronic motor protection: Yes
• Automatic carriage movement: Yes
• Carriage movement speed adjustment: Yes
• Types of cuts: Straight, diagonal, at an angle up to 45°, edge removal, bevels, end rounding
• Vertical blade travel: Yes
• Active water cooling (External pump): Yes
• Maximum length of longitudinal cut: 1200 mm
• Swivel goniometer with locking and graduation: Yes
• Cutting head tilt angle: 0/50 °
• Maximum cutting depth (90 ° / 45 °): 50 mm / 40 mm
• Maximum diameter of cutting blade: 200 mm
• Spindle/bore diameter: 20 mm
• Blade included: Yes
• Working table size without extenders: 1200x600 mm
• Table extender for large format tiles: Yes
• Wheelbase for transportation: Yes
• Blade protective guard: Yes
• Laser cut pointer: Yes (green beam)
• Materials for processing: ceramic tiles, porcelain stoneware, marble, granite, artificial stone made of
• quartz, acrylic, dekton, and others
• Package dimensions (LxWxH): 188x61x58 cm
• Weight with shipping package: 63 kg
• Machine weight: 48 kg
