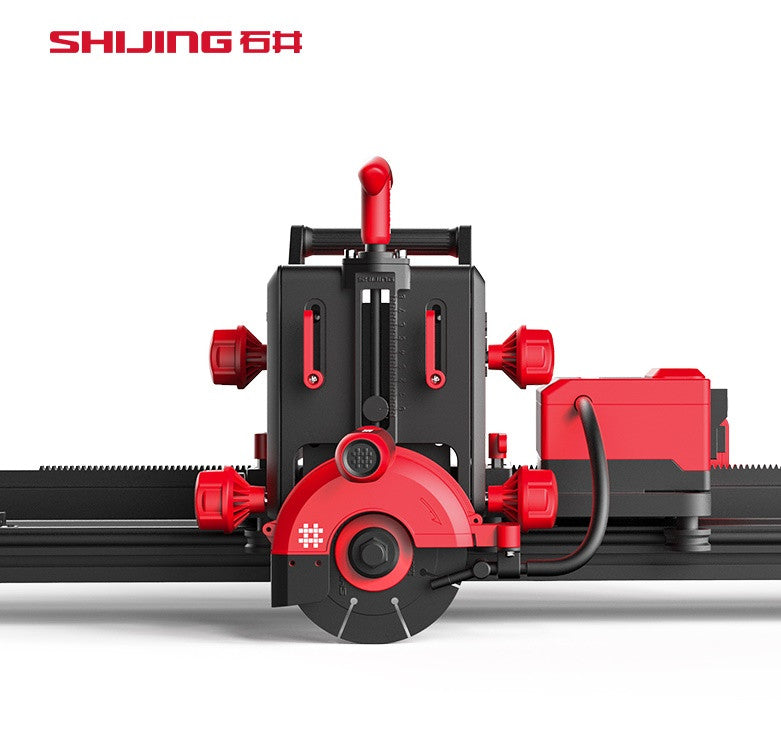

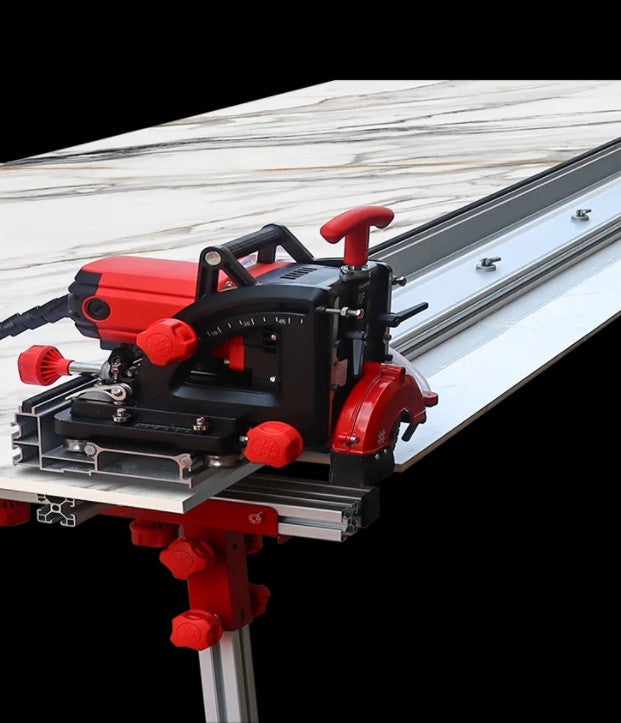

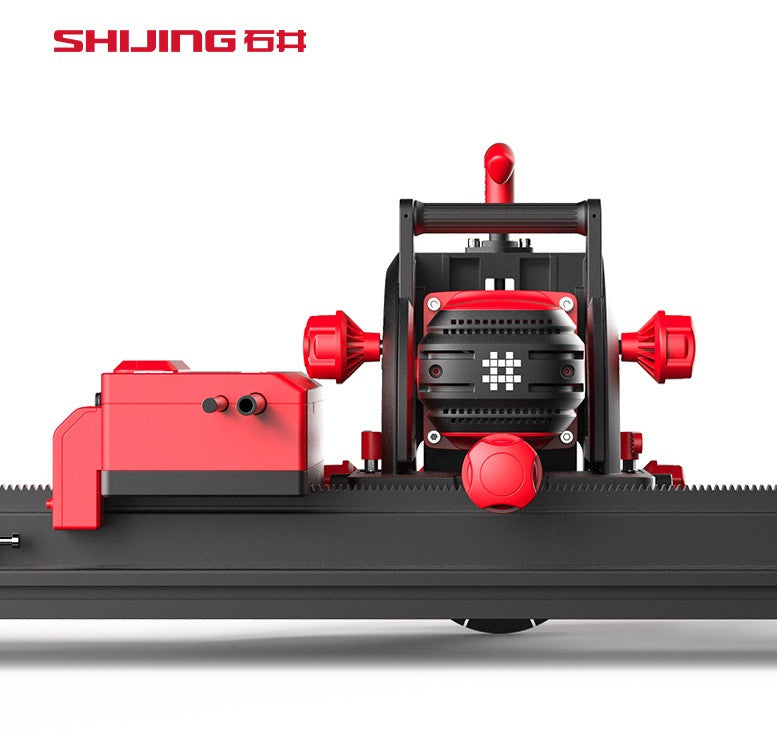

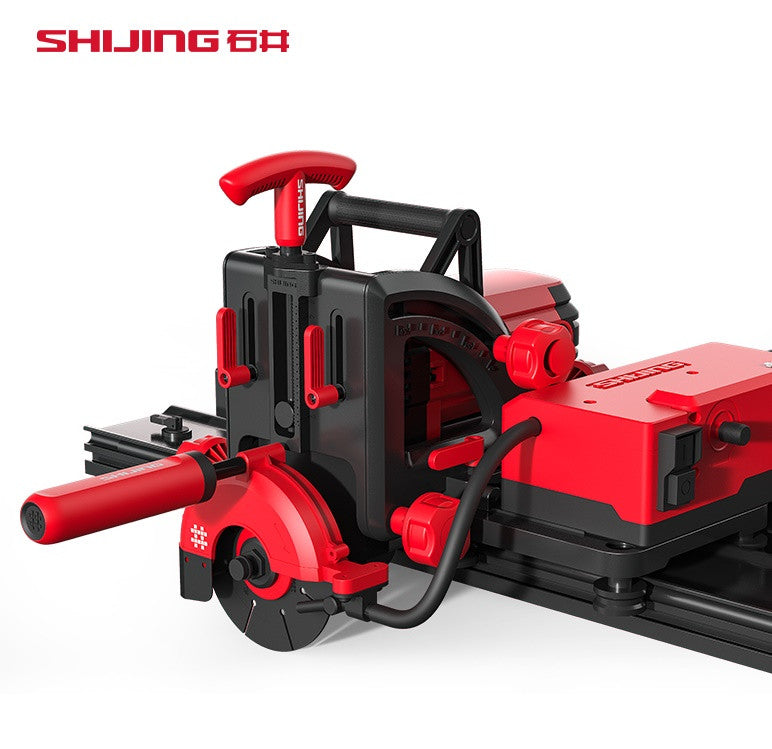

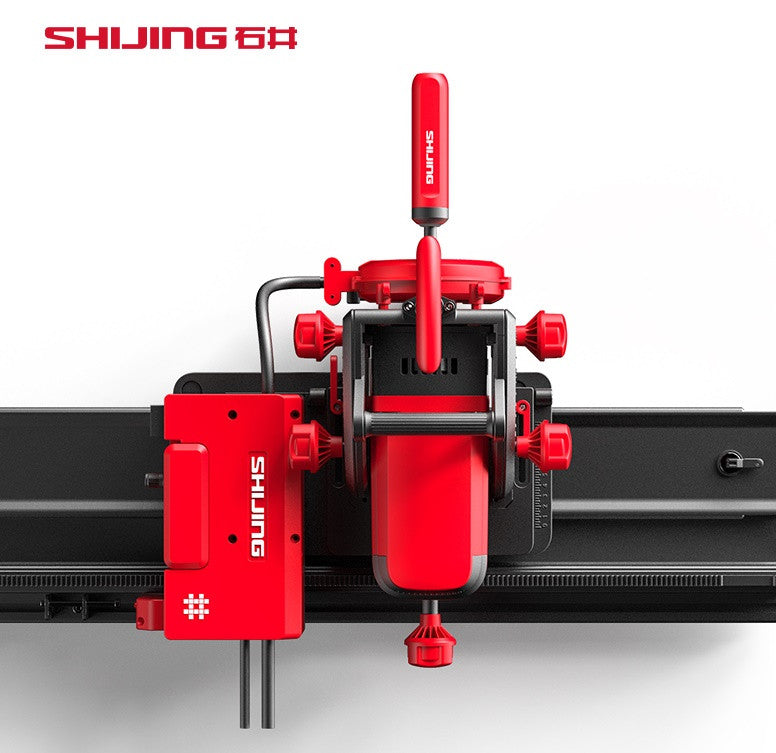

Electric tile cutter SHIJING SJR-ZD 3600, (9510) with automatic system

SHIJING 9510 – a unique tile cutter that has no competitors or analogues!
The SHIJING 9510 electric automatic large-format tile cutting system is specially designed for cutting any type of ceramic tiles, natural and artificial stone (e.g., granite, marble, quartz agglomerate) up to 3200 mm long and up to 35 mm thick. Precise cutting is guaranteed by the high quality of carriage manufacturing, aluminum guide rails, and their connection system. The system includes all necessary elements for cutting. This is a professional electric tile cutter with automatic carriage feed, which is capable of making a perfect cut – "factory cut" quality. SHIJING tile cutters do not need special advertising, as they occupy a leading place in the market in terms of quality/features and price ratio.

The machine is equipped with a powerful and high-speed motor (2800W / 13000 rpm) which makes it possible to perform two operations in one pass: cutting and edge processing with a bevel blade to get rid of even micro-chips left during cutting and obtain factory-edge quality without additional necessity of tile refinement with polishing pads. This is the only machine that can achieve such a result in a single operation with a maximum cut up to 3200mm, and time is money: we work faster – we earn more! Also, the tile cutter allows rounding the tile edge (removing radius bevel), as well as removing bevels on the front part (for example, there is an option to make stair tiles out of ordinary tiles). The wet saw performs both straight cutting and cutting at an angle of 45° with a maximum cutting length of 3200mm.

Thanks to its folding design, the machine does not cause difficulties in transport and storage. It is assembled from transport condition to working condition in 15 minutes.

The tile cutter features a high quality of assembly, materials, and components. The guide rail is made of profiled aluminum with stainless steel bolts and does not corrode from water. The water cooling system prevents the saw blade from overheating and also promotes dust-free operation.

Package Includes:

• 2 aluminum guide rails, 1.85 m long
• 1 Electric cutting system (tile cutter) 2800W for 115 and 125 mm blades
• 2 diamond blades Ø120 mm
• 1 set of spare carbon brushes
• 1 water pump
• 2 clamps for fixing the guide rails along the edges of the tile
• 1 spare belt
• Set of keys for blade replacement
• Plastic case and bag for storage and transportation of tools.
  Specifications:
  Brand SHIJING
  Automatic mode Yes
  Cutting length, mm 3200
  Diagonal cut, mm –
  Working table size, mm –
  Rubber tabletop coating –
  Blade included Yes
  Blade diameter, mm 115, 125
  Arbor diameter, mm 20, 22.2
  Cutting depth at 90°/45° 35/25
  Blade elevation above table, mm 14
  Lifting guard No
  Tilt angle at 45° Yes
  Water pump, V 24
  Laser pointer –
  Additional legs with support bar –
  Motor drive Belt (smooth rotation – less vibration)
  Drive system Ball guide rails
  Power, W 2800
  Voltage, V 220
  RPM 13000
  Vibration level 2.3m.s-2 (EN12418)
  Noise level 92dB(A) (ISO EN 3744)
  Water protection IP54
  Overheat protection yes
  Body Metallic
  Net weight, kg 67
  Complete with Plastic case, Bag
  Packaging Cardboard box
  Country of manufacture China
  Warranty period, months 12"

ABOUT THE MANUFACTURER:

This tile cutter is produced at one of the largest Chinese factories, which holds a leading position in the production of professional tools for working with tiles – SHIJING. But do not make hasty conclusions about Chinese products, as most tools of famous brands: RUBI, MONTOLIT, SIGMA, WANDELI have long been produced in China.

The SHIJING factory is a leading manufacturer producing high-class professional manual and electric tile cutters for dozens of different brands around the world. This manufacturer maintains technical leadership among Chinese manufacturers due to its commitment to the high quality of professional tools. The factory produces up to 10,000 tile cutters/month and supplies its products to 40 countries worldwide. 52% of its products are supplied to the American and European markets. Production facilities equipped with the latest technology allow producing products of excellent quality at an affordable price. Under its own brand "SHIJING", the factory promotes tile cutters mainly in the domestic market. In Europe and the USA, they have partners who order products under their own brand. By the way, SHIJING electric tile cutters are practically unmatched in the ratio of quality/functionality and price.
